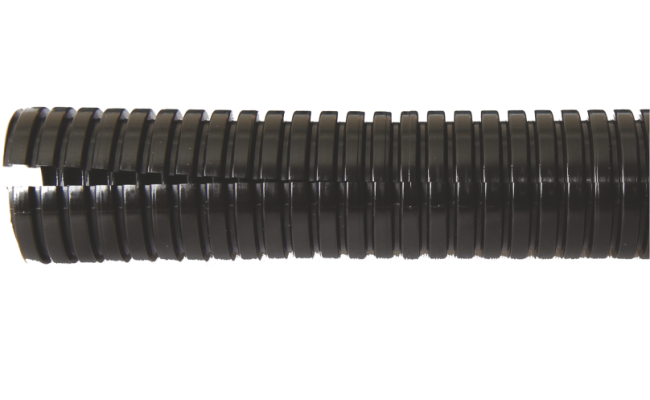

Plastic Split Type Spiral Conduits
| Material | : | Polyamide PA6 V2/V0 |
| Color | : | Grey (RAL7031) Black (RAL9005) * Orange or any other color available on request |
| Temperature range | : | -40 °C +120 °C |
| Flammability class | : | UL94 V2&V0 |
| Certificate | : | EN 45545-2 |
| Properties | : | Slit version |
| : | High fatigue life | |
| : | High impact strength | |
| : | Halogen free | |
| : | Self extinguishing | |
| : | High abrasion resistance | |
| : | High UV resistance (black) on request * | |
| : | Full-shrink packing |
Technical Data
      PA6 SPLIT TYPE SPIRAL CONDUITS |
|||||
| Nominal Diameter |
Gray Code RAL 7031 |
Black Code RAL 9005 |
d Ø mm. |
d1 Ø mm. |
Roll Length mt. |
| 7 | OGPAY 7 | OSPAY 7 | 6,5 | 10 | 100 |
| 8,5 | OGPAY 8,5 | OSPAY 8,5 | 8,5 | 12 | 100 |
| 9 | OGPAY 9 | OSPAY 9 | 10 | 13 | 100 |
| 11 | OGPAY 11 | OSPAY 11 | 12 | 15,8 | 50 |
| 13,5 | OGPAY 13,5 | OSPAY 13,5 | 14,2 | 18,4 | 50 |
| 16 | OGPAY 16 | OSPAY 16 | 16,5 | 21,2 | 50 |
| 21 | OGPAY 21 | OSPAY 21 | 23,5 | 28,4 | 50 |
| 29 | OGPAY 29 | OSPAY 29 | 29 | 34,5 | 25 |
| 36 | OGPAY 36 | OSPAY 36 | 36 | 42,5 | 25 |
| 48 | OGPAY 48 | OSPAY 48 | 48 | 54,5 | 25 |
